W2500/P5001 3/4" 20 Splines at One End

W2500/P500 Shaft With 1 3/4″ 20 at One End Length: 51″- 74″

Part No. DE36105 · Overall length 51" - 74"

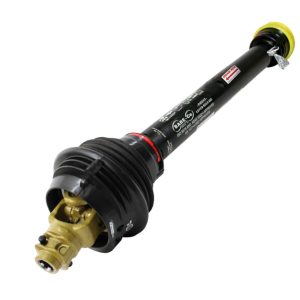

Bare-co PTO Shaft

$461.99

Overall Length

51" - 74"

Cross to Cross

39" - 63"

Tractor Yoke

1 3/4" 20 Quick Connect

Implement Yoke

None

Series

W2500/P500

110 @ 540 RPM / 176 @ 1000 RPM

Safety Shield

Yes

Ship From

Clear

Questions about this part? We're here to help.

Send us your part number or a photo and we'll make sure you get the right fit.

Specifications

Hook up the implement and set it at its shortest working position.
Measure from the center of the tractor-end cross to the center of the implement-end cross.
Your measurement must fall inside 39" - 63" for this shaft.
Check your tractor's HP is at or below 110 HP at 540 rpm.
