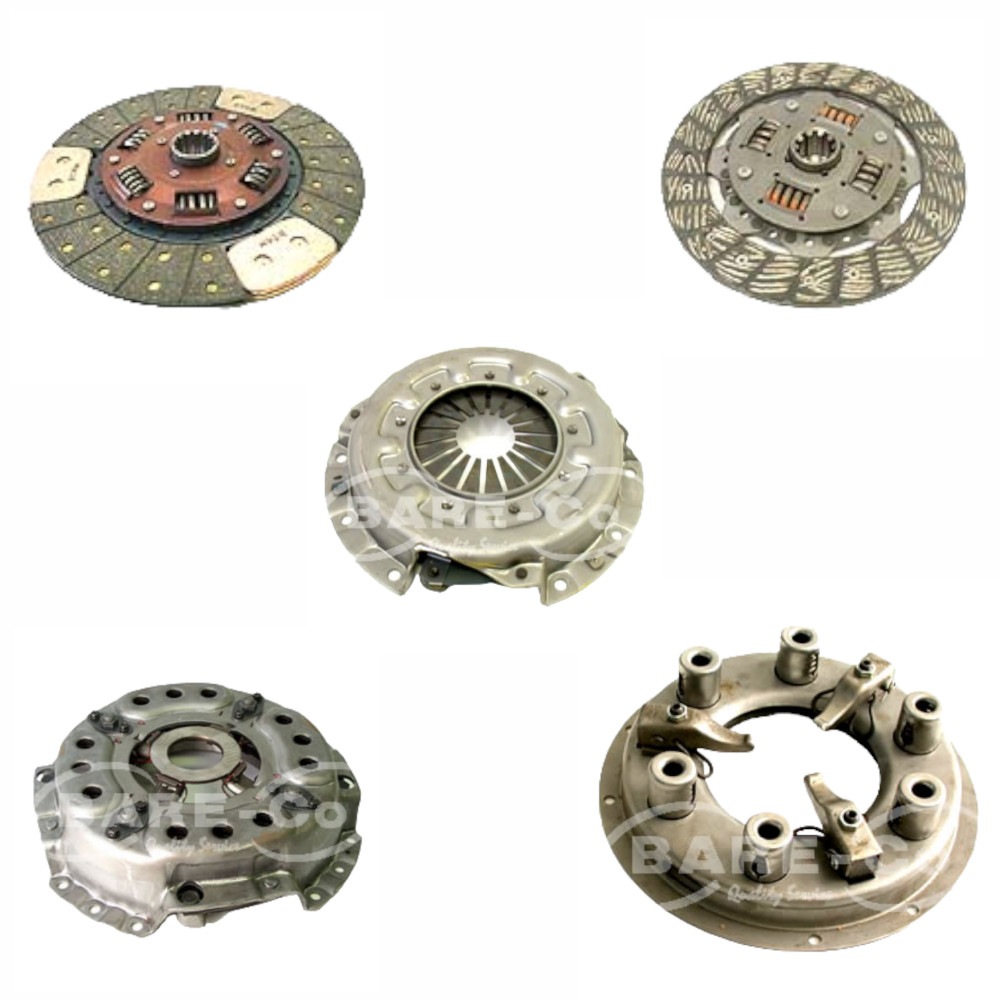

Kubota Single Plate Clutches
Mfg.: Bare-co
Single Plate Clutches
Clutch Kit
Cover Assembly
Clutch Plate
Release Bearing
Pilot Bearing
Applications : See Table Below
$11.99 – $479.99
| Application | Clutch Kit Does NOT Include Release or Pilot Bearing | Cover Assembly | Clutch Plate | Release Bearing | Pilot Bearing |
|---|---|---|---|---|---|
| B1410, B1610 | B9478 180mm x 20mm 7" x 3/4" 14 splines SPRUNG HUB | B9597 | |||
| B1550, D, E, HSTD, HSTE B1750, D, E, HSTD, HSTE B5200D, B5200E, B6200, D, DU, E, DT, HST, HSTD, HSTE, HSTDGP, HSTDPT B7200, D, DU, E, DT, HST, HSTD, HSTE, HSTDGP, HSTDPT | B9541 | B9473 = 67211-1330-0 | B9479 184mm x 20mm 7 1/4" x 3/4" 14 splines SPRUNG HUB = 67980-13400 66905-13300 67401-1340-2 | B9498 = 67311-13320 | Not Available = 66621-1412-0 BUSH |
| B4200, B4200D, B4200F, B5100, DP, E, EP, EPT B6000E, B6100D, E, DP, EP, HSTD, HSTE models B7100D, DP, HSTD, HSTE | B9542 | B9474 = 66591-1340-0 66591-1340-2 | B9479 184mm x 20mm 7 1/4" x 3/4" 14 splines SPRUNG HUB = 67980-13400 66905-13300 67401-1340-2 | B9499 = 32150-14820 | Not Available = 66621-1412-0 BUSH |
| B1700D, E, HSTD, HSTE B21, B1710D B2100D, E, HD, HSD, HSE B2110D, HBD B2400D, E, HD, HSE, HST B2410D, HBD, HST B2710HDB, HST, HSD | B9543 | B9475 REPLACES 6C040-13300 67111-1332-0 | B9480 200mmx 25mm 8" x 1" 10 splines RIGID HUB 6C040-13402 | B9500 = 6C040-13210 | Not Available = 66621-1412-0 BUSH |
| B20 B8200 D, E, DP, EP, DT HSTDP, HSTEP, HSTDU F200, F2000, F2100E F2400 | B9544 | B9475 REPLACES 6C040-13300 67111-1332-0 | can use B9480 above or B9481 200mm x 25mm 8" x 1" 10 splines SPRUNG HUB = 76630-13310 67111-1331-0 | B9498 = 67311-13320 | Not Available = 66621-1412-0 BUSH |
| B2150 HSD, HSE, HST B9200 HSDDP, HSTEP, HSDTOW, HSD, HST | B9497 RIGID HUB | B9476 = 37300-1450-0 34220-1430-2 38600-1450-0 | B9482 215mm x 25mm 8 1/2" x 1" 10 splines RIGID HUB = 66419-13400 34220-1430-0 32430-99330 Replaces Sprung Hub Type | Not Available = 66621-1412-0 BUSH |
|
| L235, DT, L245 DT, F, H, L L275DT, L285, P, WP, L295 L2050, DT, F L2250, DT, F L2500, L2500DT L2550, L2550DT L2350, DT, F L2550 DT, F, TOW, DTGST ST30 ALPHA ST35 ALPHA | B9547 RIGID CENTRE PLATE | B9476 = 37300-1450-0 34220-1430-2 38600-1450-0 | B9482 215mm x 25mm 8 1/2" x 1" 10 splines RIGID HUB = 66419-13400 34220-1430-0 32430-99330 Replaces Sprung Hub Type | B9502 = 08490-00001 | B9504 = 08121-06002 |
| ST25, ST30, | B9476 = 37300-1450-0 34220-1430-2 38600-1450-0 | B9482 215mm x 25mm 8 1/2" x 1" 10 splines RIGID HUB = 66419-13400 34220-1430-0 32430-99330 Replaces Sprung Hub Type | |||
| L3600, DTC, DTGST, DTGSTC.DTHST, DTHSTC L4200, DT, DTC, DTGST, DTGSTC, DTHST, DN, GSTC, HSC | B9549 | B9477 = TA040-20600 | B9484 260mm x 35mm 10 1/4" x 1 3/8" 19 splines RIGID HUB = TA040-20500 | B9495 = TA040-20700 | NOT FITTED |
| M6950, M6970 M7580, M7950, M7970 M8580, M8950 | B9467 OPTIONAL B9468 OPTIONAL B9469 OPTIONAL | B9450 = 36502511-2 3F7402511-0 327mm - 13" SINGLE DISC CLUTCH | B9390 ORGANIC = 338202513-0 358602513-0 B9391 ORG/CERAMIC = 338302512-0 3F7402512-0 B9451 CERAMIC = 358512513-0 | B9448 = 337402635-0 343701482-0 | B9449 = 081416007 3F7402525-0 |
| Application | Clutch Kit Does NOT Include Release or Pilot Bearing | Cover Assembly | Clutch Plate | Release Bearing | Pilot Bearing |
|---|---|---|---|---|---|
| B1410, B1610 | B9478 180mm x 20mm 7" x 3/4" 14 splines SPRUNG HUB | B9597 | |||
| B1550, D, E, HSTD, HSTE B1750, D, E, HSTD, HSTE B5200D, B5200E, B6200, D, DU, E, DT, HST, HSTD, HSTE, HSTDGP, HSTDPT B7200, D, DU, E, DT, HST, HSTD, HSTE, HSTDGP, HSTDPT | B9541 | B9473 = 67211-1330-0 | B9479 184mm x 20mm 7 1/4" x 3/4" 14 splines SPRUNG HUB = 67980-13400 66905-13300 67401-1340-2 | B9498 = 67311-13320 | Not Available = 66621-1412-0 BUSH |
| B4200, B4200D, B4200F, B5100, DP, E, EP, EPT B6000E, B6100D, E, DP, EP, HSTD, HSTE models B7100D, DP, HSTD, HSTE | B9542 | B9474 = 66591-1340-0 66591-1340-2 | B9479 184mm x 20mm 7 1/4" x 3/4" 14 splines SPRUNG HUB = 67980-13400 66905-13300 67401-1340-2 | B9499 = 32150-14820 | Not Available = 66621-1412-0 BUSH |
| B1700D, E, HSTD, HSTE B21, B1710D B2100D, E, HD, HSD, HSE B2110D, HBD B2400D, E, HD, HSE, HST B2410D, HBD, HST B2710HDB, HST, HSD | B9543 | B9475 REPLACES 6C040-13300 67111-1332-0 | B9480 200mmx 25mm 8" x 1" 10 splines RIGID HUB 6C040-13402 | B9500 = 6C040-13210 | Not Available = 66621-1412-0 BUSH |
| B20 B8200 D, E, DP, EP, DT HSTDP, HSTEP, HSTDU F200, F2000, F2100E F2400 | B9544 | B9475 REPLACES 6C040-13300 67111-1332-0 | can use B9480 above or B9481 200mm x 25mm 8" x 1" 10 splines SPRUNG HUB = 76630-13310 67111-1331-0 | B9498 = 67311-13320 | Not Available = 66621-1412-0 BUSH |
| B2150 HSD, HSE, HST B9200 HSDDP, HSTEP, HSDTOW, HSD, HST | B9497 RIGID HUB | B9476 = 37300-1450-0 34220-1430-2 38600-1450-0 | B9482 215mm x 25mm 8 1/2" x 1" 10 splines RIGID HUB = 66419-13400 34220-1430-0 32430-99330 Replaces Sprung Hub Type | Not Available = 66621-1412-0 BUSH |
|
| L235, DT, L245 DT, F, H, L L275DT, L285, P, WP, L295 L2050, DT, F L2250, DT, F L2500, L2500DT L2550, L2550DT L2350, DT, F L2550 DT, F, TOW, DTGST ST30 ALPHA ST35 ALPHA | B9547 RIGID CENTRE PLATE | B9476 = 37300-1450-0 34220-1430-2 38600-1450-0 | B9482 215mm x 25mm 8 1/2" x 1" 10 splines RIGID HUB = 66419-13400 34220-1430-0 32430-99330 Replaces Sprung Hub Type | B9502 = 08490-00001 | B9504 = 08121-06002 |
| ST25, ST30, | B9476 = 37300-1450-0 34220-1430-2 38600-1450-0 | B9482 215mm x 25mm 8 1/2" x 1" 10 splines RIGID HUB = 66419-13400 34220-1430-0 32430-99330 Replaces Sprung Hub Type | |||
| L3600, DTC, DTGST, DTGSTC.DTHST, DTHSTC L4200, DT, DTC, DTGST, DTGSTC, DTHST, DN, GSTC, HSC | B9549 | B9477 = TA040-20600 | B9484 260mm x 35mm 10 1/4" x 1 3/8" 19 splines RIGID HUB = TA040-20500 | B9495 = TA040-20700 | NOT FITTED |
| M6950, M6970 M7580, M7950, M7970 M8580, M8950 | B9467 OPTIONAL B9468 OPTIONAL B9469 OPTIONAL | B9450 = 36502511-2 3F7402511-0 327mm - 13" SINGLE DISC CLUTCH | B9390 ORGANIC = 338202513-0 358602513-0 B9391 ORG/CERAMIC = 338302512-0 3F7402512-0 B9451 CERAMIC = 358512513-0 | B9448 = 337402635-0 343701482-0 | B9449 = 081416007 3F7402525-0 |
