Yoke Clutch Parts
$5.99 – $79.99

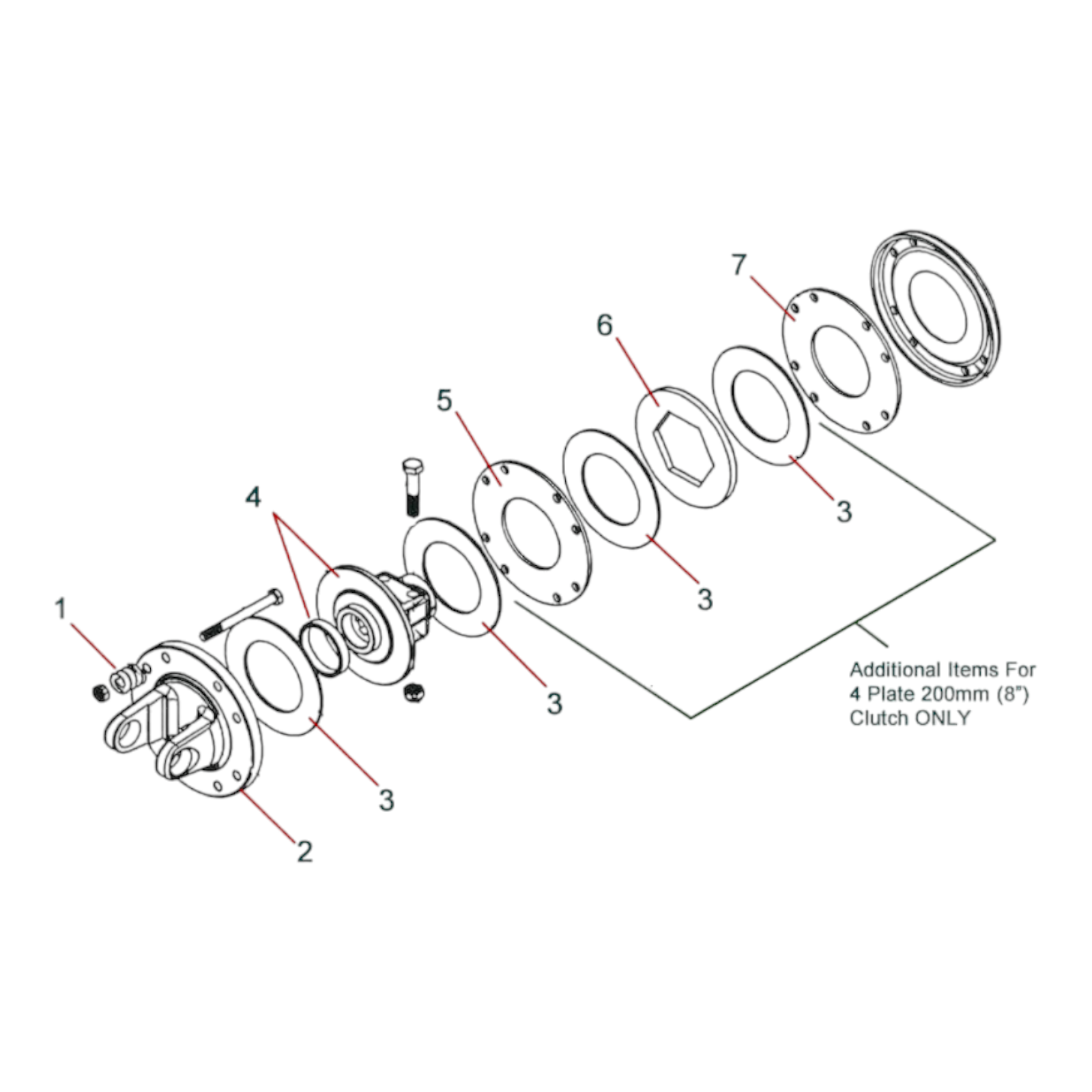

| Ref | Part No | Description | Application |
|---|---|---|---|
| 1 | B4200 | Spring | All 2 Plate Clutches |
| W2600 Series 4 Plate Clutch | |||
| 2 | B4185 | Clutch Flange Yoke | 4 Series 180mm 7" Clutch |
| B4186 | 6 Series 200mm 8" Clutch | ||
| B4187 | 8 Series 200mm 8" Clutch | ||
| B4189 | W2600 Series 200mm 8" Clutch | ||
| 3 | B4489 | Clutch Disk 140 x 85mm 5.5" x 3.46" | 4 Series 2 Plate 180mm 7" Clutch (2 REQ) |
| B4490 | Clutch Disk 160 x 85mm 6.3" x 3.46" | 6 Series 2 plate 200mm 8" Clutch (2 REQ) | |
| AB160 | Clutch Disk 160 x 97mm 6.3" x 3.8" | W2600 Series, 8 Series 2 & 4 Plate 200mm 8" Clutch (2 or 4 REQ) | |
| 4 | B4190 | Drive Hub 1 3/8" x 6 Spline 140mm Dia | 4 Series 2 Plate 180mm 7" Clutch |
| B4191 | Drive Hub 1 3/8" x 6 Spline 160mm Dia. | 6 & 8 Series 2 plate 200mm 8" Clutch | |
| B4197 | Drive Hub 1 3/8" x 21 Spline 160mm Dia. | 6 & 8 Series 2 plate 200mm 8" Clutch | |
| B4193 | Drive Hub 1 3/4" x 20 Spline 160mm Dia. | 6 & 8 Series 2 plate 200mm 8" Clutch | |
| B4194 | Drive Hub 1 3/4" x 20 Spline 160mm Dia. | W2600 Series 4 Plate 200mm 8" Clutch | |
| 5 | B4206 | Center Pressure Plate 97mm 3.8" ID | 200mm 8" 4 Plate Clutches only. |
| 6 | B4198 | Intermediate Drive Plate | 200mm 8" 4 Plate Clutches only. |
| 7 | B4199 | Outer Pressure Plate | 4 Series 180mm 7" Clutch |
| B4196 | Outer Pressure Plate 85mm 3.46" ID | 6 Series 200mm 8" Clutch | |
| B4206 | Outer Pressure Plate 97mm 3.8" ID | 8 Series, 2600 Series 200mm 8" Clutch |
