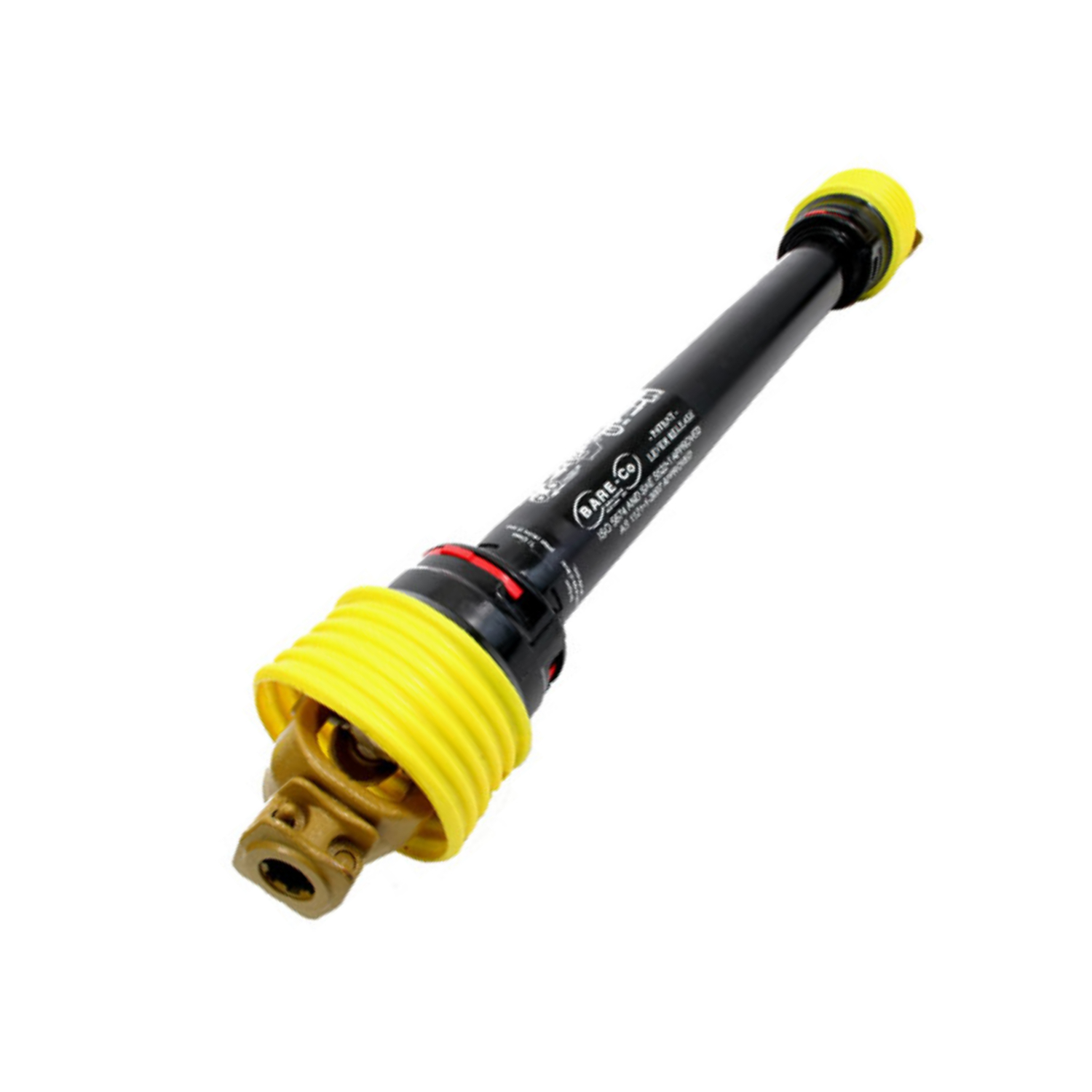

W2500/P5001 3/8" 6 Spline at One End

Series W2500/P500 Shaft with 1 3/8″ 6 Splines at One End Length: 72″- 109″

Part No. EW36150 · Overall length 72" - 109"

$507.99

Mfg.

Bare-co

Overall Length

72" - 109"

Cross to Cross

60" - 98"

Tractor Yoke

1 3/8" 6 Quick Connect

Implement Yoke

None

Series

W2500/P500

110 @ 540 RPM / 176 @ 1000 RPM

Safety Shield

Yes

Ship From

Clear

Questions about this part? We're here to help.

Send us your part number or a photo and we'll make sure you get the right fit.

Specifications

Hook up the implement and set it at its shortest working position.
Measure from the center of the tractor-end cross to the center of the implement-end cross.
Your measurement must fall inside 60" - 98" for this shaft.
Check your tractor's HP is at or below 110 HP at 540 rpm.
