Series 1 Shaft With 1 3/8" 6 at One End Length: 28"- 38" – Part # EB1060
Series 1 Shaft With 1 3/8" 6 at One End Length: 28"- 38" – Part # EB1060 Series 1 Shaft With 1 3/8" 6 at One End Length: 34"- 47" $164.99
Series 1PTO Shafts

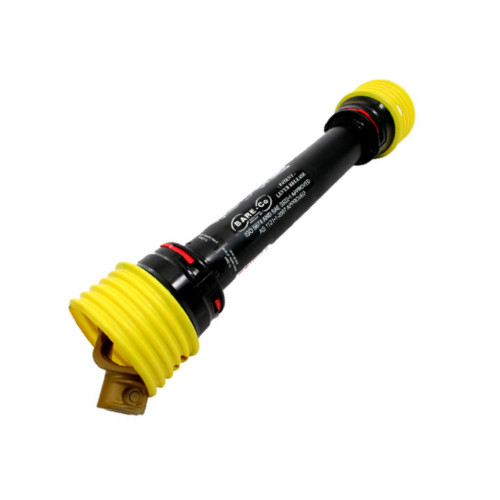

Series 1 Shaft With 1 3/8″ 6 at One End Length: 28″- 38″

Part No. EB1060 · Overall length 28" - 38"

Bare-co PTO Shaft

$139.99

Overall Length
28" - 38"
Cross to Cross
24" - 33"
Tractor Yoke
1 3/8" 6 Quick Connect
Implement Yoke
None
Series
1
HP
16 @ 540 RPM / 26 @ 1000 RPM
Safety Shield
Yes

Questions about this part? We're here to help.

Send us your part number or a photo and we'll make sure you get the right fit.

Text us: 346-465-2689 Email us

Specifications

Series 1 Shaft With 1 3/8" 6 at One End Length: 28"- 38" specifications
Part numberEB1060
Shaft seriesSeries 1
Overall Length28" - 38"
Cross to Cross24" - 33"
Tractor Yoke1 3/8" 6 Quick Connect
Implement YokeNone
Series1
HP16 @ 540 RPM / 26 @ 1000 RPM
Safety ShieldYes
Power rating16 HP at 540 rpm
Shipping weight16 lbs
Box size35 × 8 × 8 in

Will it fit?

  1. Hook up the implement and set it at its shortest working position.
  2. Measure from the center of the tractor-end cross to the center of the implement-end cross.
  3. Your measurement must fall inside 24" - 33" for this shaft.
  4. Check your tractor's HP is at or below 16 HP at 540 rpm.
Not the right length? Use the PTO shaft selector

About this part

Bare-co Series PTO Shaft

Our PTO shafts are designed for various equipment; they come in various lengths with different style end yokes. Farm machinery operates in very strenuous conditions, which is why we offer the best PTO shafts on the market. These shafts are manufactured by BARE-Co. Bare-co has grown to be the largest manufacturer and wholesale distributor of agricultural tractor parts in the southern hemisphere.
